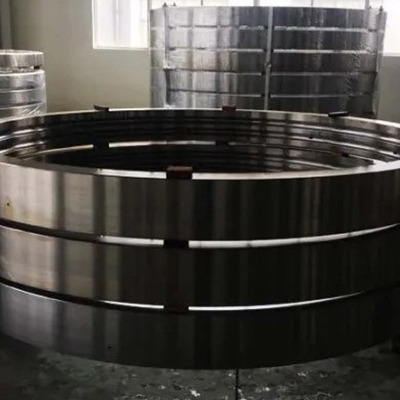

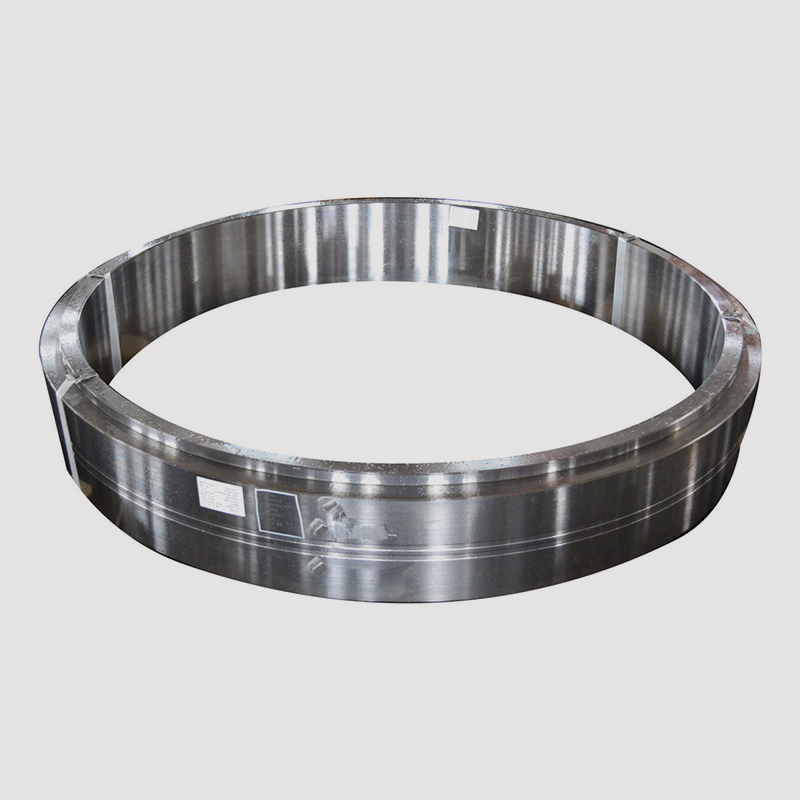

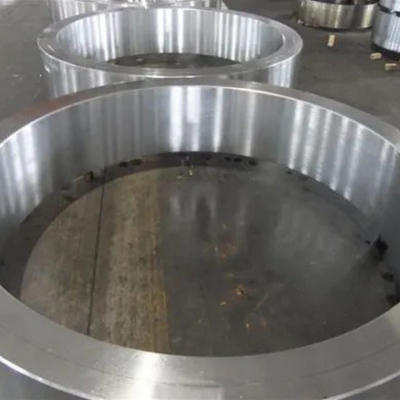

Custom AISI 4140/1045/4340 Forged Steel Rings

Home / Products / Forged Steel Rings
Categories
Contact Us

AISI 4140/1045/4340 Forged Steel Rings Manufacturers

Jiangyin Golden Machinery Equipment Co., Ltd.

Jiangyin Golden Machinery Equipment Co., Ltd.

Jiangyin Golden Machinery Equipment Co., Ltd. covers an area of 10,000 square meters and has several standardized workshops. We specialize in the production of medium and small forgings and flanges, supported by advanced equipment and mature production technologies for sawing, forging, heat treatment, and precision rough machining.


We are China AISI 4140/1045/4340 Forged Steel Rings Manufacturers and Custom AISI 4140/1045/4340 Forged Steel Rings Factory. We are capable of meeting the requirements of customers across multiple industries, including power, petroleum, chemical engineering, metallurgy, machinery, light industry, and shipbuilding. By actively expanding into international markets, we have established cooperative relationships with several well-known enterprises, including Rich Reiter (Sweden), Alstom (France), Konecranes (Finland), Danieli (Italy), and General Electric (USA). Our products and services have earned wide recognition and praise from customers.

certification

  • ISO9004
  • ECM
  • ISO9001

News

Forged Steel Rings Industry Knowledge

Why AISI 4340 Forgings Outperform 1045 and 4140 in Impact Resistance for Bearing Rings

In the demanding field of bearing ring manufacturing, the ability to withstand sudden shock loads and high-stress cycles is paramount. Jiangyin Golden Machinery Equipment Co., Ltd., located in the strategic industrial hub of the Yangtze River Delta, specializes in the precision forging of high-alloy steels. While AISI 1045 and 4140 are staples in the industry, AISI 4340 stands as the superior choice for heavy-duty applications due to its unique chemical composition and metallurgical response.

The Nickel Advantage: Enhancing Toughness and Hardenability

The primary reason for the superior impact resistance of AISI 4340 lies in its alloy chemistry. At our 10,000-square-meter facility, Jiangyin Golden Machinery Equipment Co., Ltd. processes these materials to maximize their inherent properties:

  • Nickel Content: Unlike 1045 (carbon steel) and 4140 (Cr-Mo steel), AISI 4340 contains approximately 1.8% nickel. Nickel significantly increases the material's toughness, especially at low temperatures, by lowering the ductile-to-brittle transition temperature.
  • Deep Hardenability: The triple-alloying of chromium, molybdenum, and nickel allows for uniform hardness throughout the entire cross-section of AISI 4140/1045/4340 Forged Steel Rings. This prevents the "soft core" issue often found in 1045 or larger sections of 4140, which can lead to fatigue cracks under impact.
  • Microstructural Stability: Under the expert guidance of our 18 engineers, 4340 is heat-treated to achieve a fine-grained tempered martensite structure, providing an optimal balance of high tensile strength and ductility.

Technical Parameter Comparison

The following table compares the typical mechanical properties of these three materials after standardized forging and heat treatment at Jiangyin Golden Machinery Equipment Co., Ltd.:

Property AISI 1045 AISI 4140 AISI 4340 Impact on Bearing Life
Alloying Elements None (Carbon) Cr, Mo Ni, Cr, Mo 4340 offers the best overall alloy synergy.
Impact Toughness (Charpy V-Notch) Moderate (Approx. 20J) Good (Approx. 50J) Excellent (Approx. 80J+) 4340 absorbs significantly more energy before failure.
Yield Strength $\approx 310$ MPa $\approx 655$ MPa $\approx 850$ MPa+ 4340 handles higher static and dynamic loads.
Hardenability (Effective Section) Shallow Medium Deep 4340 ensures uniform performance in thick rings.

The Golden Machinery Advantage in Ring Forging

Producing high-performance rings requires more than just the right steel. Jiangyin Golden Machinery Equipment Co., Ltd. provides a complete production line including smelting, forging, and specialized heat treatment. Our reputation for dependable quality has allowed us to supply global leaders such as Alstom, Konecranes, Danieli, and General Electric. By performing full in-house testing—from non-destructive examination (UT/MT) to metallographic inspection—we ensure that every AISI 4340 ring delivers the reliability needed for marine engineering, metallurgy, and power generation.

Frequently Asked Questions (FAQ)

  • Q1: How does Jiangyin Golden Machinery Equipment Co., Ltd. verify the internal integrity of high-alloy forged rings? At Jiangyin Golden Machinery Equipment Co., Ltd., we utilize rigorous non-destructive examination (NDE) methods. Given the critical nature of AISI 4340 in high-impact scenarios, every ring is subjected to ultrasonic testing (UT) and magnetic particle inspection (MT) in our specialized workshops to ensure the absence of internal porosity or surface cracks before delivery.
  • Q2: Why is AISI 4340 the preferred material for Jiangyin Golden Machinery Equipment Co., Ltd. customers in the aerospace and oil & gas sectors?
    Our customers in these sectors, such as General Electric, require materials that can survive extreme shock and fatigue. Jiangyin Golden Machinery Equipment Co., Ltd. recommends 4340 because its nickel-chromium-molybdenum composition provides a unique combination of strength and toughness that 1045 and 4140 cannot match in large-section applications, ensuring long-term service reliability.
  • Q3: Does Jiangyin Golden Machinery Equipment Co., Ltd. support custom heat treatment specifications for different alloy rings?
    Yes. With 18 engineers and technical specialists, Jiangyin Golden Machinery Equipment Co., Ltd. provides comprehensive support in product design and technical assistance. We customize the quenching and tempering parameters based on the specific material (1045, 4140, or 4340) and the performance requirements of the customer's application, ensuring the final component is perfectly suited for its environment.
